In modern gaming, the idea of playing games on battery in say a gaming laptop is laughable: framerates drop to 30FPS or less, the laptop itself throttles the CPU, kicks multiple power-saving features effectively turning your gaming experience into a slideshow presentation.
But that’s already an expectation. With modern GPUs come absurd amounts of power draw and with the more powerful cards pushing to newer power ceilings, balancing this has been very challenging for laptop makers. And to be completely, honest we’re still far away from high-resolution laptop gaming on battery. I just wanted that out of the way because if you’re expecting a clickbait article that extolls the RTX 50 laptops as being able to do 120FPS QHD or more, this ain’t it.
What we do have are developments possibly spurned forth by the surge of battery-powered gaming PC handhelds and the increase in users expecting similar performance. While it is possible for these devices to push 1080p resolutions at 28W or less, they do so with much smaller GPUs. To achieve similar performance, NVIDIA is developing techniques to reach lower power draw.
The GeForce RTX 50-series graphics cards for both desktops and laptops are designed with a layered stack of silicon tweaks, firmware logic, and smart software that together make the GeForce RTX 50-series Laptop GPUs roughly twice as power-efficient as their Ada predecessors with emphasis on the “laptop” part as while desktop GPUs have these features, they normally only have idle and load scenarios to deal with unlike laptops which have AC, low power, and battery power idle/load states to deal with.
In this article, we brisk through some of these concepts that make these possible as we see more RTX 50-series laptops arriving the market. This article is also updated to reflect the details presented from NVIDIA’s Southeast Asia Press Event of April 2025.
How the GPU Naps Between Frames

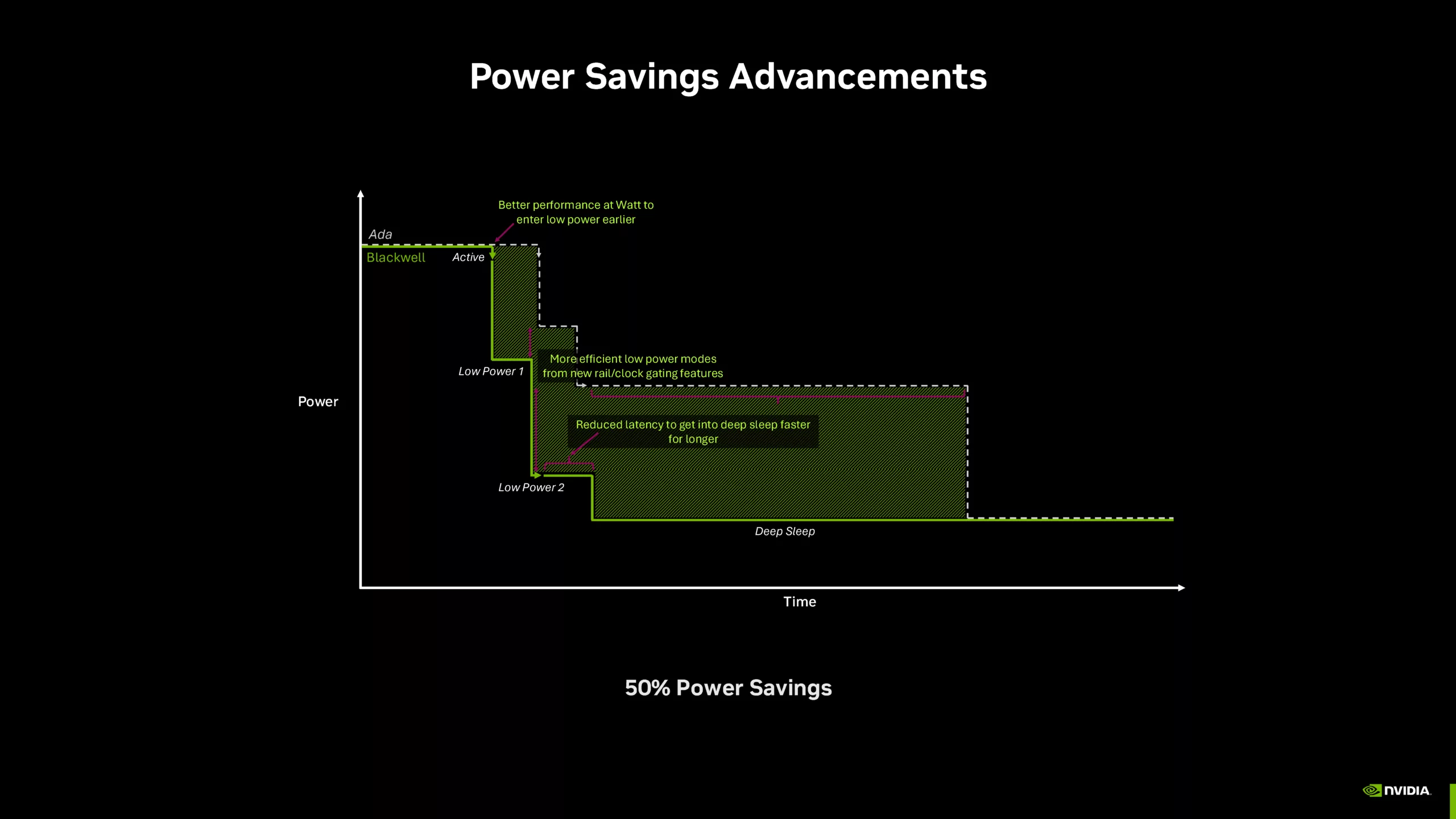

Modern graphics chips have long paused idle logic, but Blackwell deepens the rest cycle. Alongside traditional clock gating, it adds:
- Power gating — cuts the supply rail to entire functional blocks when they’re predicted to stay idle long enough for the energy saved to outweigh the cost of switching. The decision is made in micro- to milliseconds, so blocks can shut down and re-energise within a frame interval, trimming leakage power almost continuously.
- Rail gating – drops whole power domains into a deep-sleep state, slashing leakage by ~50 % versus the 40-series.
Because Blackwell’s micro-controllers trigger these states in micro- to milliseconds, the GPU can enter deep sleep between frame flips or even while the player reads a dialogue box.
Waking Up Instantaneously
Napping is only useful if the chip can spring awake before the next draw call. Blackwell’s rebuilt PLLs let core and memory clocks jump or fall in tens of nanoseconds, a thousand-fold improvement over Ada. The GPU therefore races to peak MHz for an explosion or spell effect, then coasts almost immediately once the burst has passed.
Feeding Power Efficiently
Laptop boards adopt PAM3-signalled GDDR7, which hauls 1.5 bits per edge at lower I/O voltages than GDDR6X. For mobile parts NVIDIA validates an even leaner voltage curve, so each megabyte fetched from VRAM consumes less coulombs.
Display Pipeline as Power Partner
Blackwell relocates frame-pacing logic into the display engine with hardware Flip Metering. Even frame spacing improves smoothness, but the hidden win is that the CPU no longer has to police presentation, allowing deeper package C-states and shaving whole watts during steady workloads.
Rendering Fewer, Cheaper Pixels

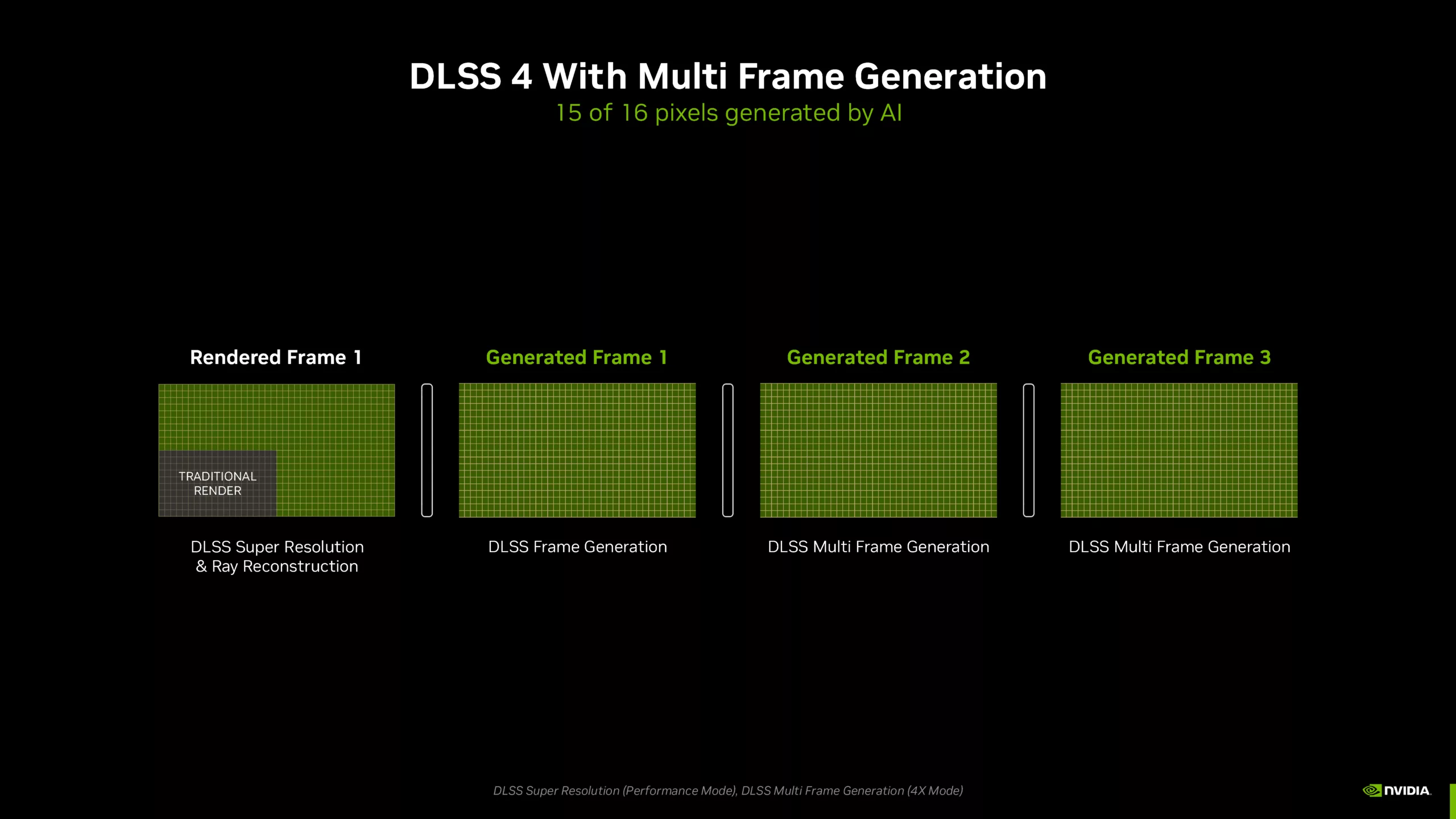

DLSS 4’s Multi-Frame Generation asks the shader core for one of every 16 pixels; 5th-gen Tensor Cores synthesize the remainder at a far superior performance-per-watt ratio. Because the heavy model runs only once per base frame and a lightweight optical-flow network handles the extras, users gain up to forty minutes of unplugged play time simply by turning the feature on.
BatteryBoost Grows Smarter
The 2025 release of BatteryBoost tracks optical flow, user input, and UI changes. When scenes calm down it dynamically:
-
Reduces render-loop cadence to match on-screen motion.
-
Drops panel refresh to integer divisors of its maximum.
-
Parks idle CPU cores and down-clocks PCIe links.
In NVIDIA’s own tests a 99Wh RTX 5090 laptop lasts ≈40 % longer in Baldur’s Gate 3 than a comparable 4090 model, and ≈30 % longer while streaming HDR video.
Offloading the Side Jobs
Three ninth-gen NVENC engines transcode 4:2:2 H.265 or UHQ AV1 in hardware at a fraction of the joules an x86 core would burn, while the AI Management Processor (AMP) schedules DLSS, Broadcast, or local LLM inference onto Tensor Cores without stalling graphics.
The Result
Blackwell laptops no longer treat battery gaming as a compromise. By shutting down unneeded transistors, racing only when necessary, shifting work to power-friendly accelerators, and letting the entire platform nap in sync, they make AAA gameplay on an airplane or couch a realistic proposition. Its still not without compromises and there’s definitely scaling involved along with optimizations.
Still, in a world where gamers are now more accepting of gaming in 8W SOCs, discrete GPUs will take learnings from this market and slowly bring that up to full-sized laptops. Its a race between compute power and efficiency and when they collide to hit that performance sweetspot, everyone’s going to be benefitting for it. The next time you slide out the AC adapter during a boss fight and nothing changes except the whir of the fans, you’ll feel the quiet confidence of silicon engineered to sip rather than guzzle.
